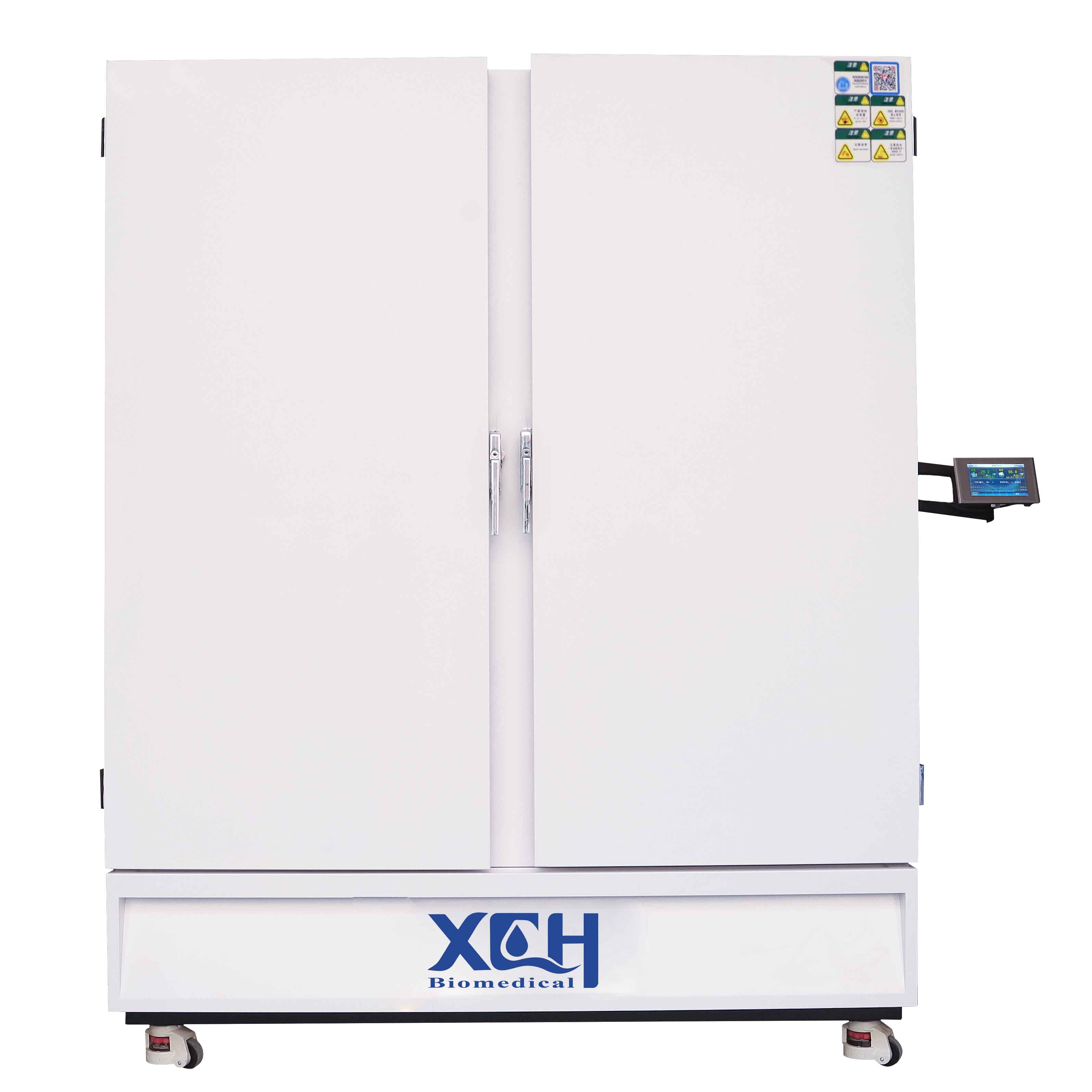

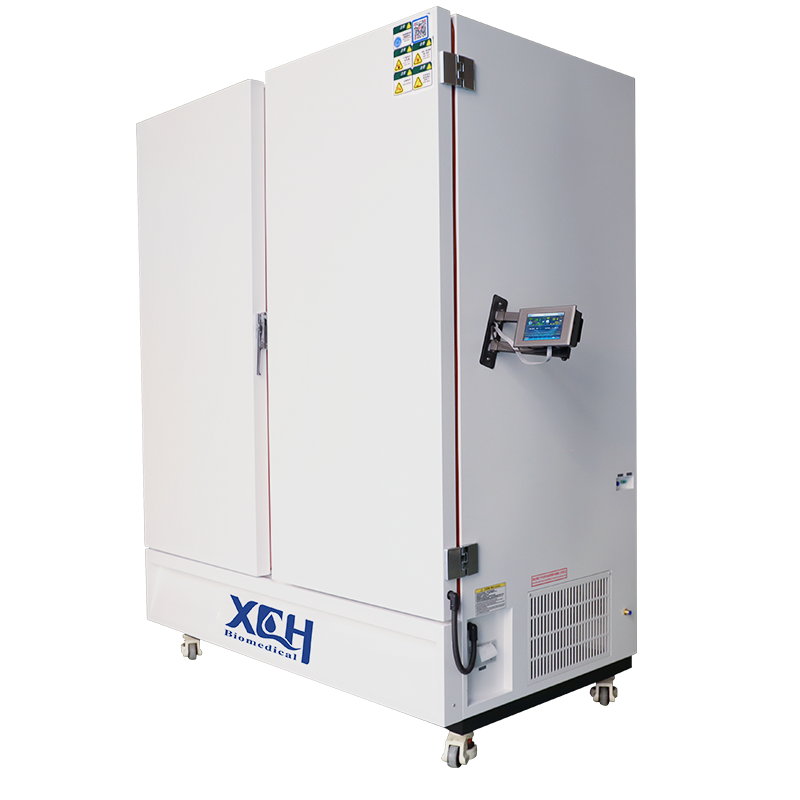

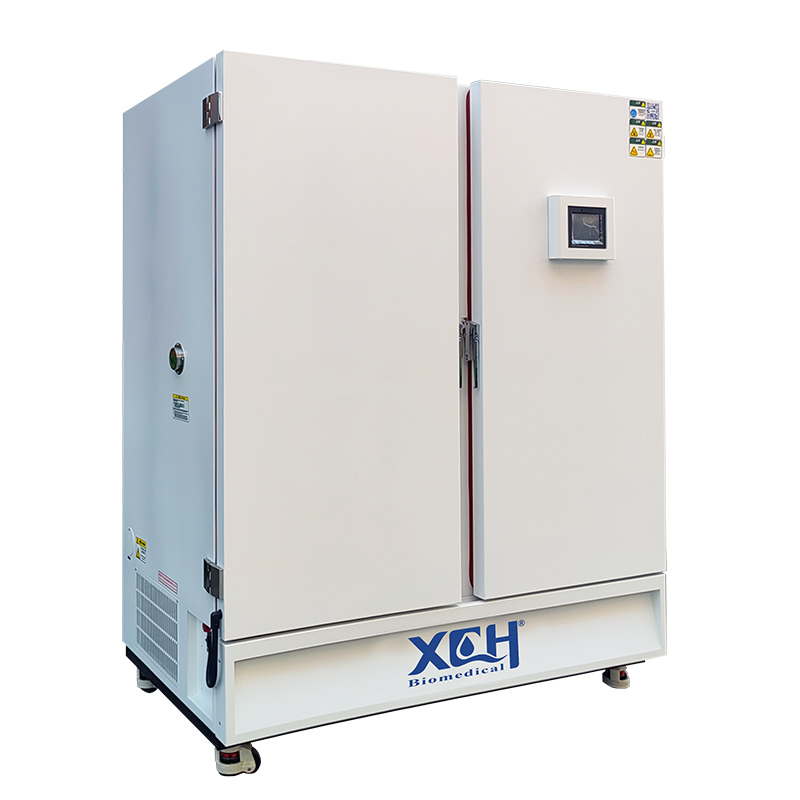

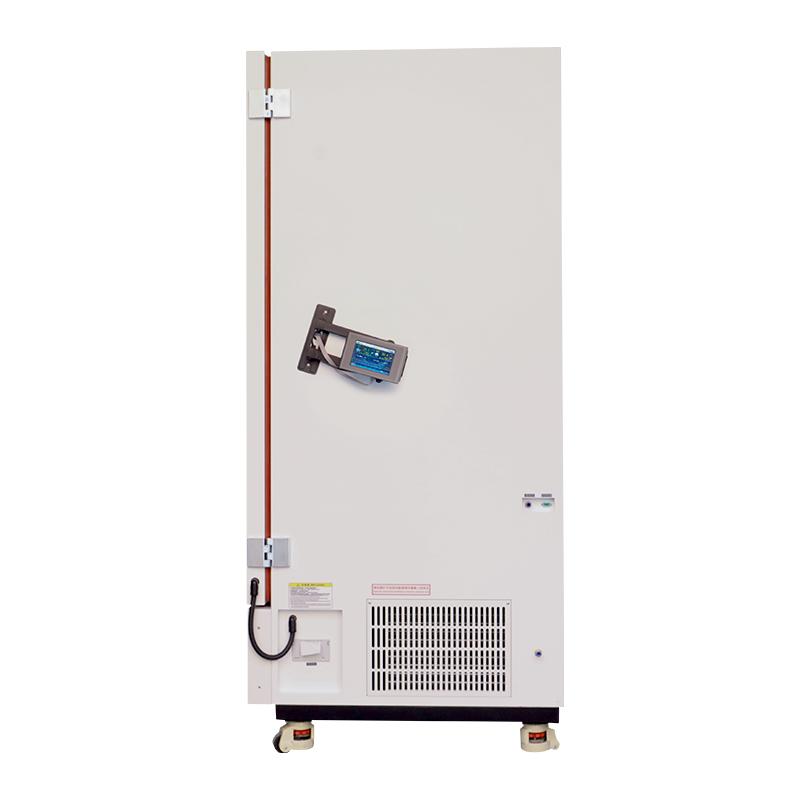

3000L Medical Stability Temperature Humidity Chamber XCH-3000SD

Model

The XCH-3000SD Double Door Medicine Drug Stability Environmental Testing Chamber, using imported high-quality components and manufacturing technology, with Medicine Stability Chamber stable and reliable performance, suitable GMP certified users

Model: XCH-800SD-3000SD

TEMP Range: 10~65℃

TEMP Fluctuation: ＜±0.5℃

TEMP Deviation: ＜ ±1.0℃

Humidity Range: 20 ～ 95%

Humidity Deviation:＜ ±3%RH

Capacity: 800L~3000L

Environment temperature: +5 ～ 35℃

Item No. :
XCH - 3000SD
Origin :
China

FEATURES

STAINLESS STEEL
The liner is made of mirror stainless steel 304
REAL-TIME ALARM
Upper and lower limit deviation alarm of temperature and humidity
1 YEAR WARRANTY
All machines come with a 1-year limited warranty and engineer remote support.
HIGH SENSITIVITY
Capacitive humidity sensor with high sensitivity.

Inquire Now

Download

3000L Medical Stability Temperature Humidity Chamber XCH-3000SD

TEMPERATURE & HUMIDITY Specs:

Temperature Control: Temperature Fluctuation ＜ ±0.5℃ ,Temperature Deviation ＜ ±1.0℃

Humidity Control: Humidity Fluctuation ≤ ±3%RH,Humidity Deviation ≤ ±3%RH

Meet a criterion : Meet ICHQ1A(R2)、Chinese Pharmacopoeia 2020 edition.
Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃

SMS alarm: Optional

CONTROL TECHNOLOGY

Refrigeration System: Two sets imported brand fully enclosed compressor,long-life,low noise

Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free.

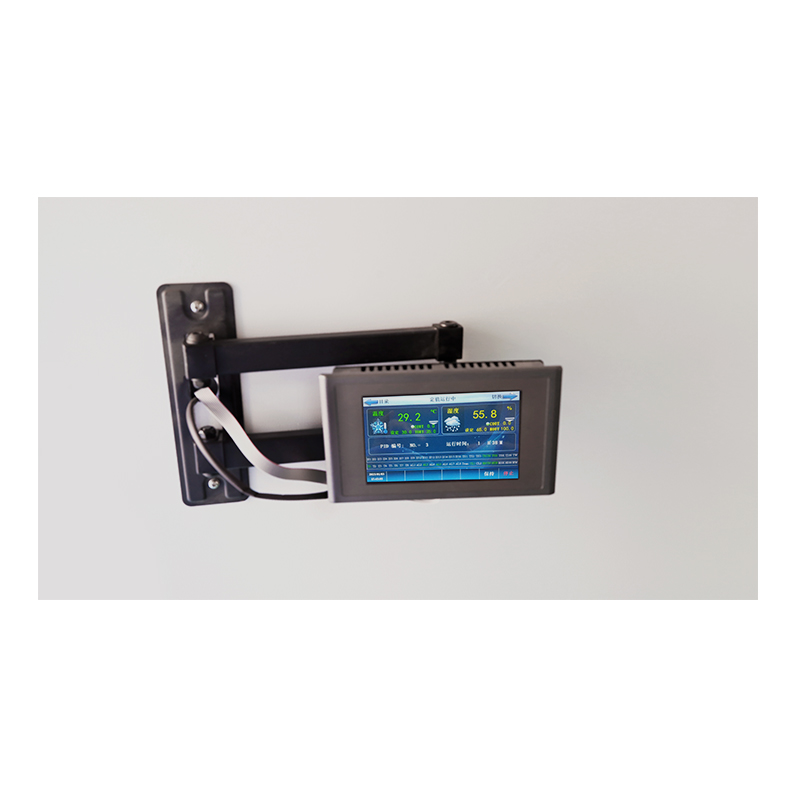

Control System: Color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail.

SAFETY, STANDARDS, & DATA

Safety device: compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.

Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply;

Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.

Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.

MATERIAL:

Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.

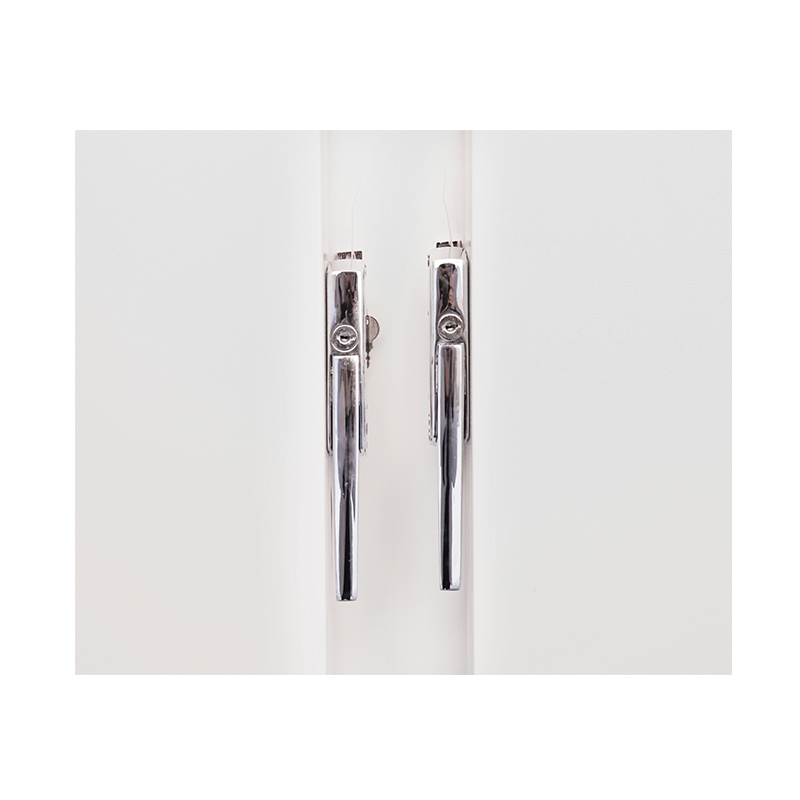

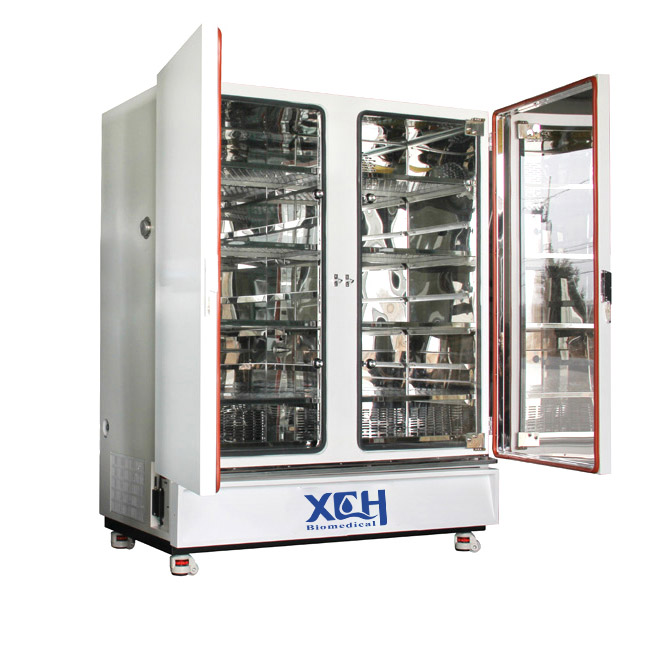

Double door structure: Only open a single door when sampling and lofting to minimize temperature and humidity impact

Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.

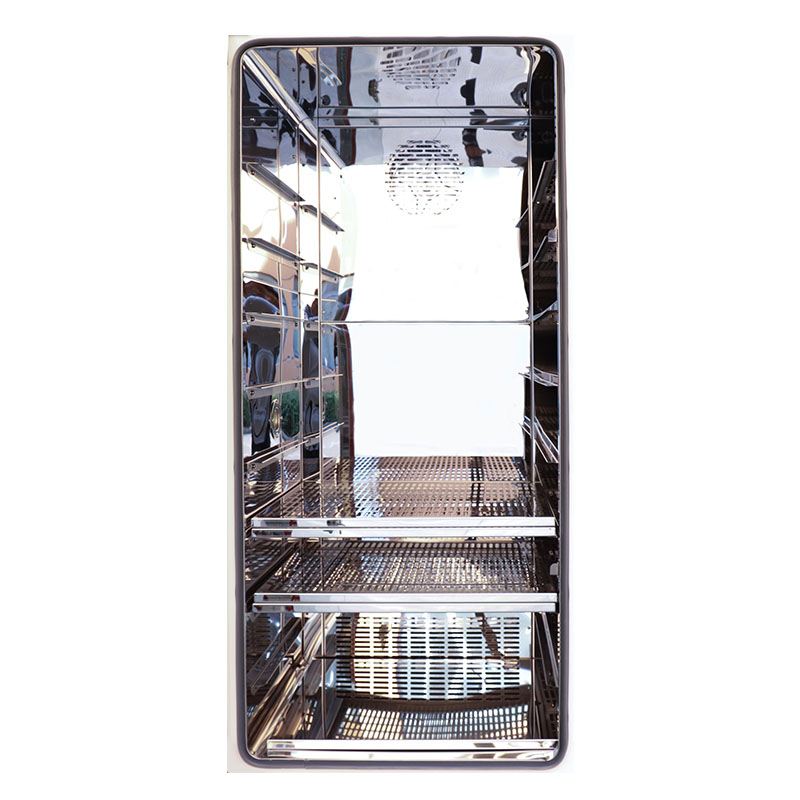

Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.

MODEL & PARAMETERS:

MODEL	TEMP RANGE	Humidity RANGE	CAPACITY(L)	INTERNAL DIMEN(mm) W×D×H	EXTERNAL DIMEN(mm) W×D×H	POWER(KW)	Shelf (Standard)
XCH-800SD-2	10～65℃	20 ～ 95%	800	1200×490×1360	1385x895x1965	2.5	4
XCH-1000SD-2	10～65℃	20 ～ 95%	1000	1400×510×1400	1615x925x1975	3.0	4
XCH-2000SD-2	10～65℃	20 ～ 95%	2000	1500×970×1370	1710x1380x1990	3.5	4
XCH-3000SD-2	10～65℃	20 ～ 95%	3000	1600×1350×1370	1810x1470x2270	4.0	4

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Get In Touch With

The XCH Biomedical brand test chambers can meet the temperature, humidity and vacuum test requirements of the biomedical field. Using advanced technology and excellent accessories, our products are widely recognized by customers for their stable and qualified performance.
