Stability Chamber Manufacturer
Drying Oven
Home Drying Oven

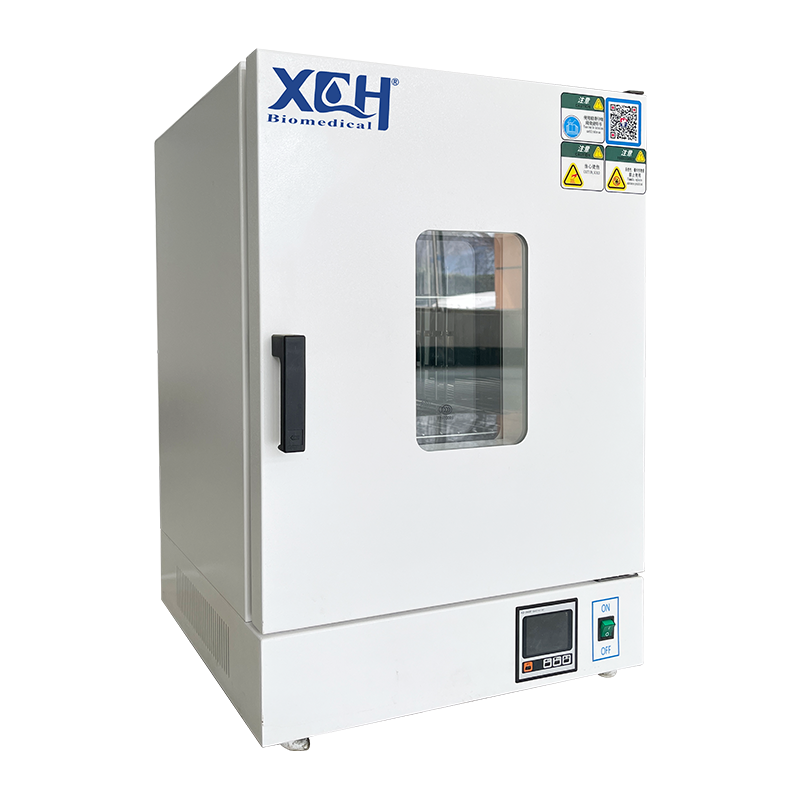

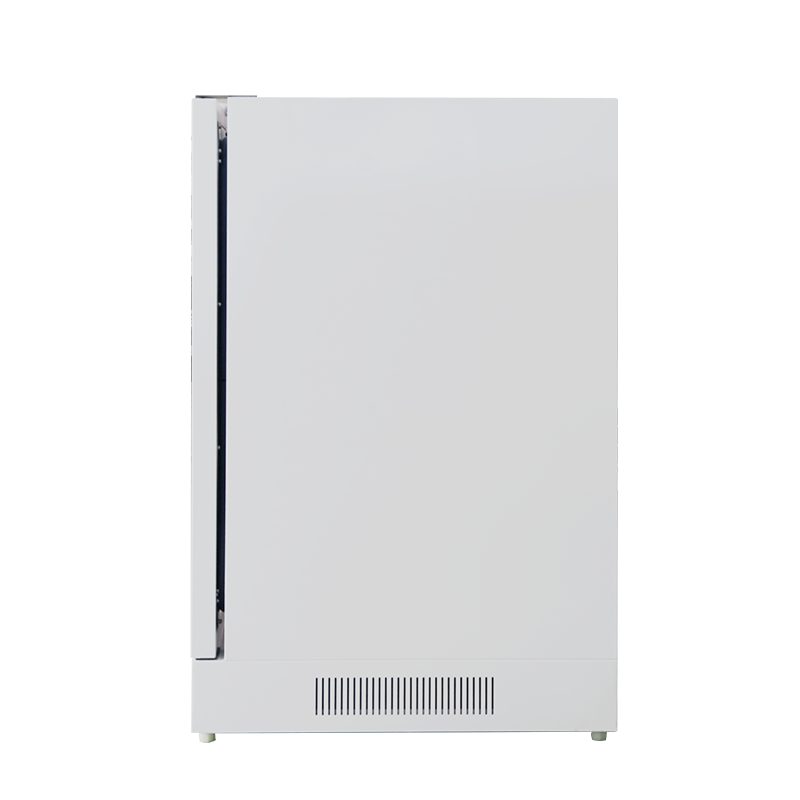

Electric thermostatic heat treatment hot air lab drying oven

Electric thermostatic heat treatment hot air lab drying oven

Laboratory Hot Air Oven are used across a wide range of industries, research and laboratories for simple applications. The electric oven for laboratory ensures temperature stability and reproducibility for all your desired application needs.



Model: 9075A-9925A

Temp.Range: RT+10℃~300℃

Temperature Fluctuation: ±1.0℃

Temperature Accuracy: ±0.1℃

Timing range: 1-9999min

Environment Temperature: +5 ~ 40℃

Installed Power: AC220V±10% 50HZ

  • Item No. :

    XCH 9075A-9925A
  • Origin :

    China

FEATURES

  • STAINLESS STEEL STAINLESS STEEL

    The liner is made of mirror stainless steel 304

  • REAL-TIME ALARM REAL-TIME ALARM

    Upper and lower limit deviation alarm of temperature and humidity

  • 1 YEAR WARRANTY 1 YEAR WARRANTY

    All machines come with a 1-year limited warranty and engineer remote support.

  • HIGH SENSITIVITY HIGH SENSITIVITY

    Capacitive humidity sensor with high sensitivity.

TEMPERATURE & HUMIDITY Specs:




  • Temperature Control: Constant temperature fluctuation is ±1℃ , Temperature accuracy is 0.1℃ .
  • Timing Range: 1-9999min;
  • Power: AC 220V±10% 50HZ
  • Optional: Independent temperature limit alarm system will automatically stop when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents



It is used for drying, baking, melting wax and sterilizing in the laboratory of mineral enterprises.

CONTROL TECHNOLOGY


  • Adopt microcomputer P.I.D. temperature controller with overtemperature deviation protection digital display, with timing function, accurate and reliable temperature control.

SAFETY, STANDARDS, & DATA


  • It is used for drying, baking, melting wax and sterilizing in the laboratory of mineral enterprises.



  • The hot air circulation system is composed of a fan that can run continuously at high temperature and suitable air duct to improve the temperature uniformity in the working room.

MATERIAL:


  • The box is made of mirror stainless steel by argon arc welding, and the outside of the box is made of high quality steel plate.



  • Using the new synthetic silicon seal strip, can operate at high temperature for a long time, long service life, easy to replace.

MODEL & PARAMETERS:

MODEL TEMP RANGE CAPACITY INTER DIMEN
W×D×H
EXTER DIMEN
W×D×H
POWER TRAYS
XCH-9075A  RT+10℃ ~ 300 70L 450×400×450(mm) 740×618×630(mm) 1.0KW 2
XCH-9145A  RT+10℃ ~ 300 140L 550×450×550(mm) 840×670×730(mm) 1.5KW 2
XCH-9245A  RT+10℃ ~ 300 240L 600×500×750(mm) 880×720×930(mm) 2.5KW 2
XCH-9425A  RT+10℃ ~ 300 420L 640×585×1355(mm) 780×750×1880(mm) 3.1KW 3
XCH-9625A  RT+10℃ ~ 300 620L 780×600×1355(mm) 980×800×1880(mm) 4.0KW 4
XCH-9925A  RT+10℃ ~ 300 1000L 1000×600×1600(mm) 1140×800×2150(mm) 5.2KW 4
