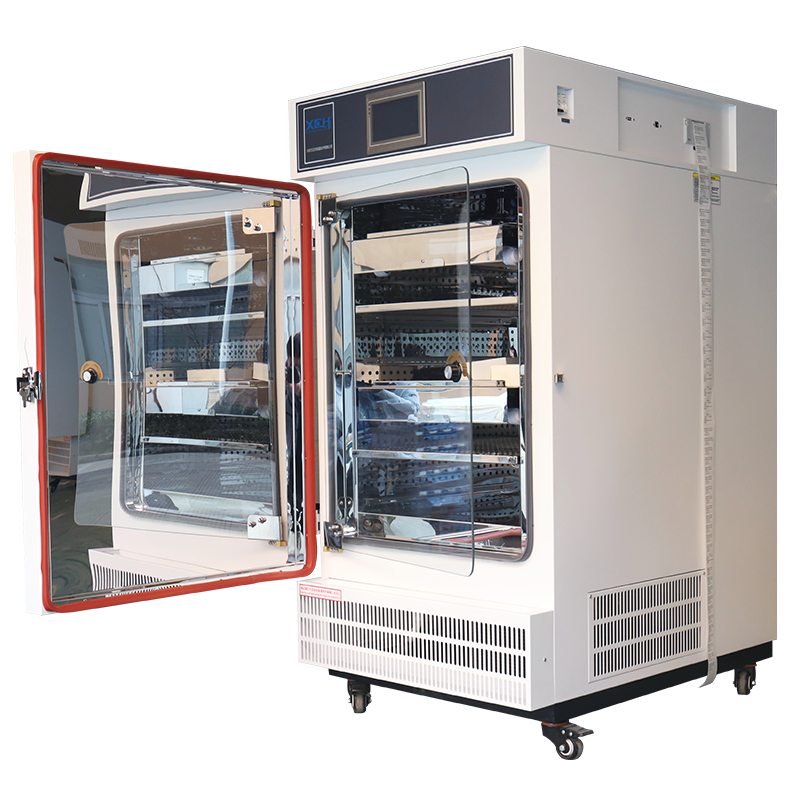

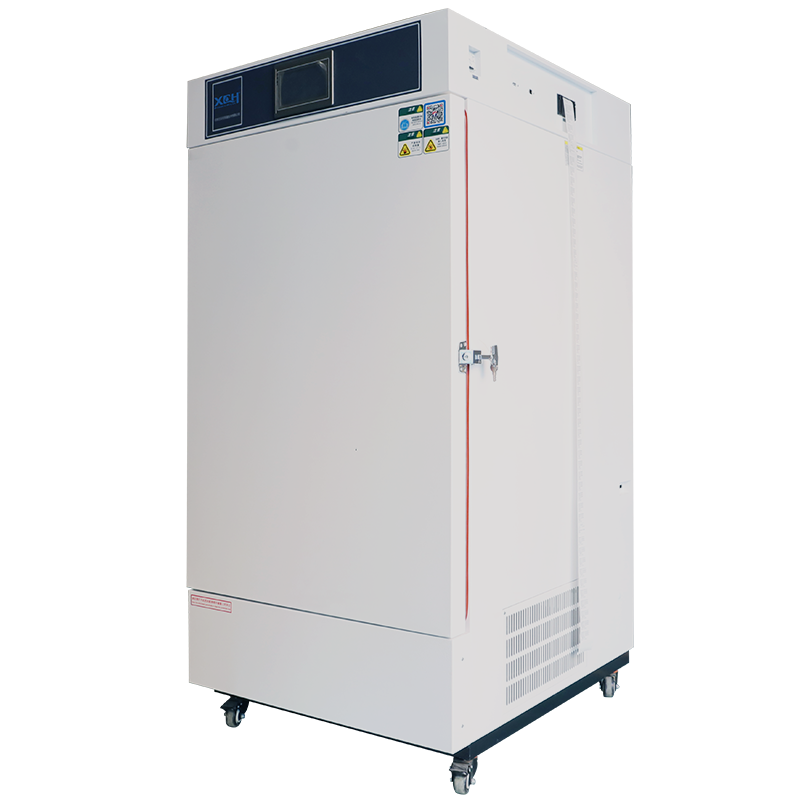

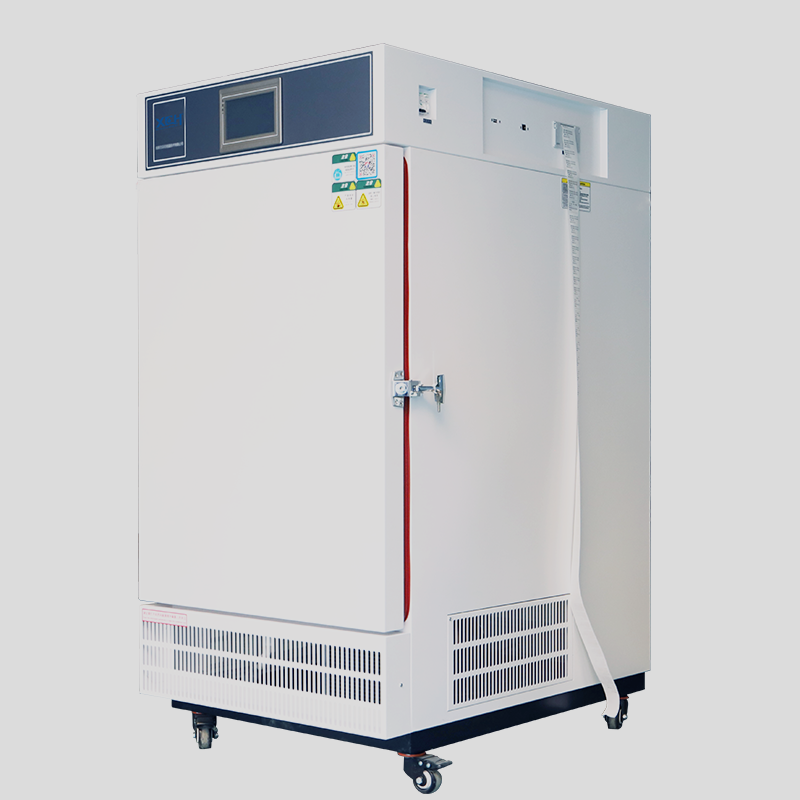

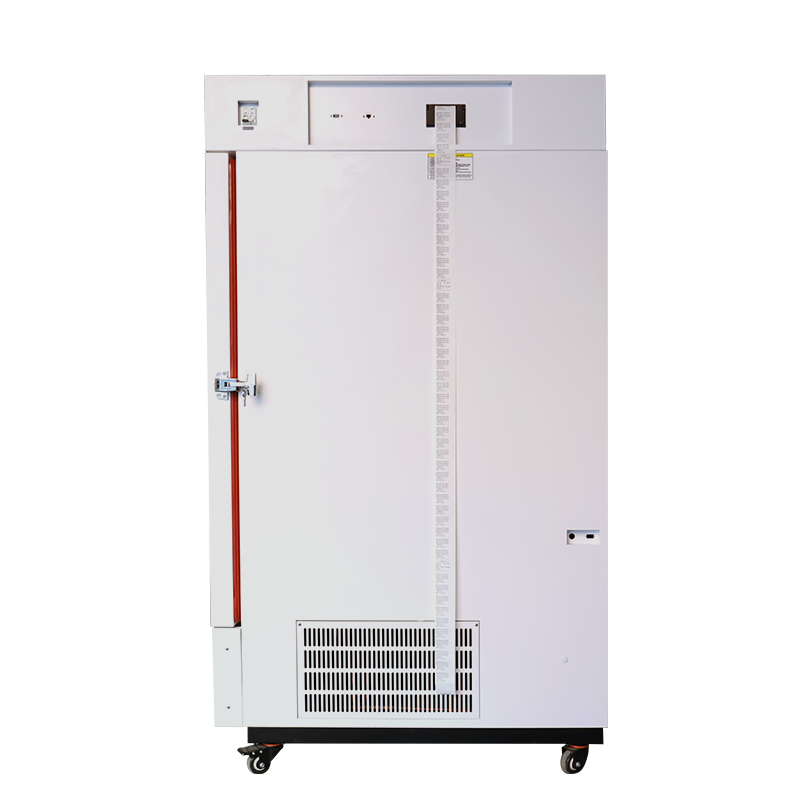

Photostability Test Chamber, Temperature Stability Chamber XCH-500TPS

Model

XCH-500TPS medicine Photostability Test Chamber is equipped with visible light and near-ultraviolet lamp tube, Medicine Stability Chamber can independently control the type of light source, and can print and record visible light illumination and near-ultraviolet radiation in real time. Visible light and near-ultraviolet can be directly set, automatically adjusted and precisely controlled.

Model: XCH 150-500TPS/LTPS

Temp.Range: 15℃ - 50℃

Temperature Fluctuation:＜±1℃

Temperature deviation:＜ ±2.0℃(SAME LEVEL)

Light Range: Visible light range: 100 ~ 8000LUX; Total illumination should not be less than 1.2 x 10^6Lux·hr

UV range: NUV range: 0.84 ~ 5w/m squared; The near-UV energy is no less than 200w•hr/㎡

UV wavelength: NUV wavelength: 320 ~ 400nm;

Environment temperature: +5 ～ 35℃

Item No. :
XCH 500TPS
Origin :
China

FEATURES

STAINLESS STEEL

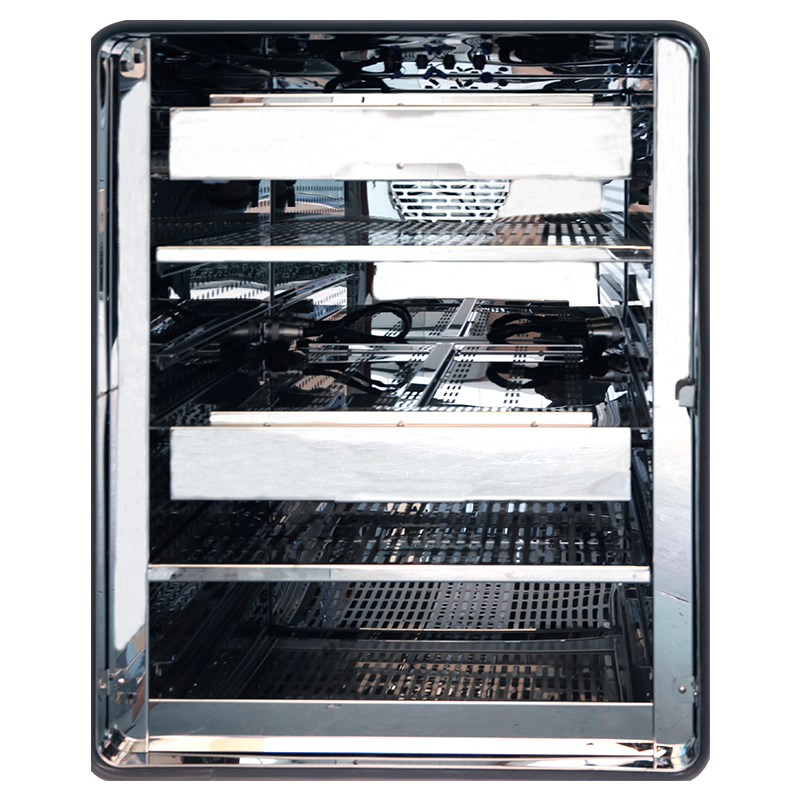

The liner is made of mirror stainless steel 304
REAL-TIME ALARM
Upper and lower limit deviation alarm of temperature and humidity
1 YEAR WARRANTY
All machines come with a 1-year limited warranty and engineer remote support.
HIGH SENSITIVITY
Capacitive humidity sensor with high sensitivity.

Inquire Now

Download

Photostability Test Chamber, Temperature Stability Chamber XCH-500TPS

TEMPERATURE & HUMIDITY Specs:

Temperature Control: Temperature Fluctuation ≤ ±1.0℃，Temperature Deviation ≤ ±2.0℃（Same layer）

Illumination Control: The total illumination is not less than 1.2×106

Lux·hr，Near ultraviolet energy is not less than 200w·hr/㎡

CONTROL TECHNOLOGY

Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise.

Control System: The imported digital display illuminance controller,High control accuracy.

SAFETY, STANDARDS, & DATA

Safety Device: Compressor overheat protection and overload protection;Fanoverheating protection;

Temperature and humidity upper and lower limit deviationalarm;Independent overtemperature protection alarm system.

MATERIAL:

Safety device: compressor overheat and overpressure overload protection, Fan overheat protection.

Dual Protection: Equipped with independent overtemperature protection system, can automatically cut off the power supply

Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard

Meet a criterion: Meet ICHQ1B、Chinese Pharmacopoeia 2020 edition

MODEL & PARAMETERS:

MODEL	TEMP RANGE	CAPACITY(L)	INTERNAL DIMEN(mm) W×D×H	EXTERNAL DIMEN(mm) W×D×H	POWER(KW)	TRAY	SystemIllumination range	Remarks
XCH-150TPS	15～50℃	150	650×490×500	830×790×1250	1.0	1	Visible light: 100 ～ 8000Lux Near UV: 0.84 ～ 5w/m2	1independent light source system 1printing storage system
XCH-300TPS	15～50℃	300	550×660×770	850×1030×1570	1.5	2		2independent light source system 2printing storage system
XCH-500TPS	15～50℃	500	680×680×1080	860×1050×1800	2.2	3		3*independent light source system Print and store 3 layers of data
XCH-150LTPS	2～30℃	150	650×490×500	830×790×1250	1.5	1	Visible light: 100 ～ 5000Lux Near UV: 0.84 ～ 1w/m	1independent light source system 1printing storage system
XCH-500LTPS	2～30℃	500	680×680×1080	860×1050×1880	2.2	2	Visible light: 100 ～ 5000Lux Near UV: 0.84 ～ 1w/m	2*independent light source system Print and store 2 layers of data
