XCH Biomedical Laboratory Equipment Nomenclature

1. Drug stability test chamber (touch screen)

Original imported process

S: Stability chamber;

GS: GMP, Stability chamber;

LGS: Low humidity, GMP, Stability chamber (25%RH, drug stability test chamber with low humidity function);

CGS: Combine, GMP, Stability chamber (combined with illumination system, including visible light and near-ultraviolet, meet ICH, Chinese Pharmacopoeia);

LCGS: Low humidity, Combind, GMP, Stability chamber (25%RH low humidity, combined lighting system, including visible light and near-ultraviolet);

FS: FDA, Stability chamber (the difference from GS is mainly that FS is equipped with imported electronic record system, with three-level user authority, with audit trail function);

CFS: Combine, FDA, Stability chamber (combined illumination system, including visible light and near ultraviolet);

2. Drug stability test chamber (digital display)

Combination of original imported process and independent research and development process

S: Stability chamber;

D: Digital;

SD: Stability chamber by Digital;

LSD: Low humidity, Stability chamber by Digital (25%RH, drug stability test chamber with low humidity function);

CSD: Combined, Stability chamber by Digital r (combined with a lighting system, including visible light, meeting the requirements of some products in the Chinese Pharmacopoeia);

LCSD Low humidity, Combind, Stability chamber by Digital (25%RH low humidity, combined lighting system, including visible light);

SD-Ⅱ: Stability chamber by Digital, Ⅱ: individual model, with two sets of compressors, one for backup and one for use;

3. Drug stability test chamber (volume)

The internal volume is expressed in numbers, unit: L

1) Single door drug stability test chamber

150GS:150L

500GS:500L

1000SD: 1000L

Several special models (because of historical models) such as:

380GS:400L

720GS:800L

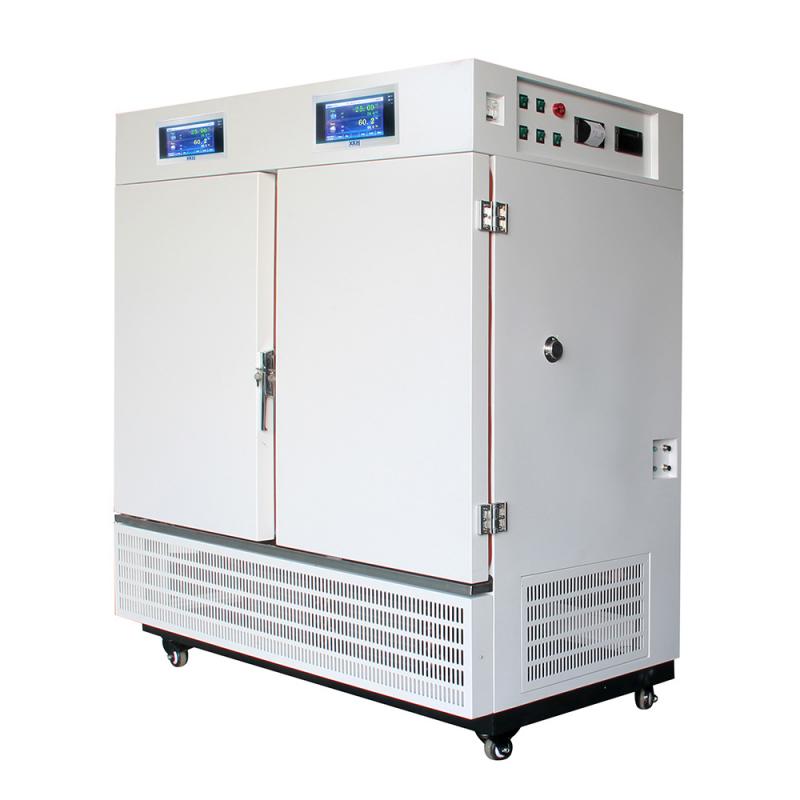

2) Two-box independent control drug stability test chamber

200GS: 100L+100L, two upper and lower chamber, both of which are temperature and humidity chamber

300GS: 150L+150L, two upper and lower chamber, both of which are temperature and humidity chamber

320GS: 150L+150L, two chamber left and right, both are temperature and humidity chamber

520GS: 250L+250L, two chamber left and right, both are temperature and humidity chamber

200CGS: 100L+100L, two upper and lower  chamber, upper chamber (box A) with light

300CGS: 150L+150L, upper and lower chamber, upper chamber (box A) with light

520LCGS: 250L+250L, left and right two boxes, left box (A box) with light, humidity 10-90%RH, dedicated for medicine bags

Similar to SD series

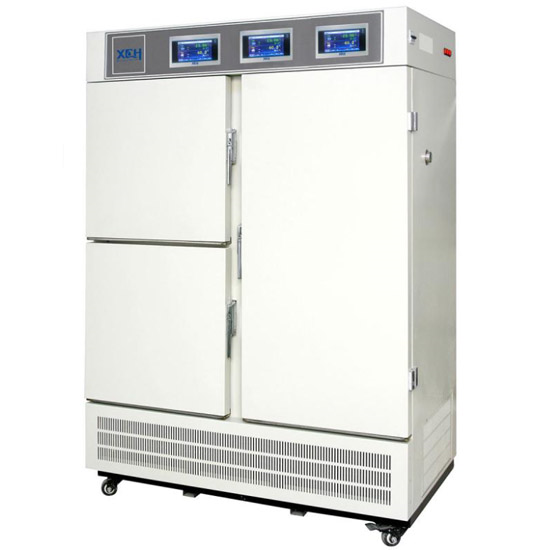

3) Three-chamber independent control comprehensive drug stability test chamber

430GS: 100L+100L+200L, the three boxes are temperature and humidity chamber

630GS: 150L+150L+300L, all three boxes are temperature and humidity chamber

430CGS: 100L+100L+200L, A: temperature + visible light + near-ultraviolet; B: temperature + humidity; C: temperature + humidity

630CGS: 150L+150L+300L, A: temperature + visible light + near ultraviolet; B: temperature + humidity; C: temperature + humidity

430SD: 100L+100L+200L, the three boxes are temperature and humidity chamber

630SD: 150L+150L+300L, all three boxes are temperature and humidity chamber

430CSD: 100L+100L+200L, A: temperature + visible light; B: temperature + humidity; C: temperature + humidity

630CSD: 150L+150L+300L, A: temperature + visible light; B: temperature + humidity; C: temperature + humidity

4. Other models, to be continued.
